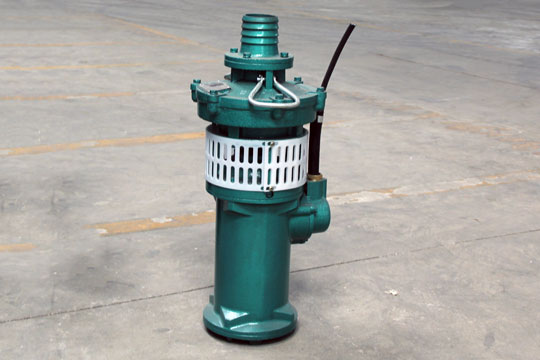

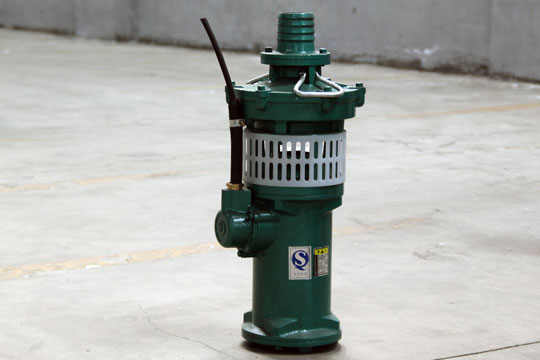

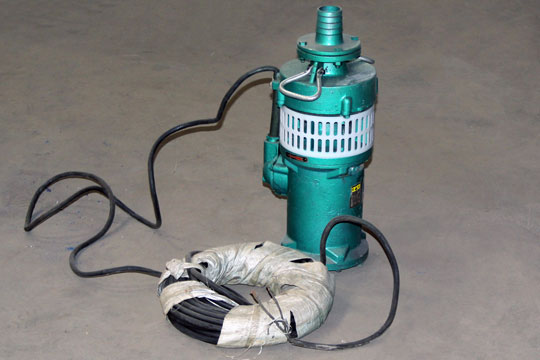

QY Submersible Pump

QY Submersible Pump Details

Operating Parameters:

Flow range: 10—100 m3/h;  Head range:5—54 m;   Discharge diameter scope:φ51—φ152mm;   Temperature range: ≤40℃.

Product Overview:

QY series submersible pump is widely used in various kinds of water conservancy facilities such as farm irrigation, sprinkler irrigation with water, the supply and drainage system of civil building and, industrial and draining water from the hills and mountainous area, the diversion in low-lying areas, water supply and drainage in urban and rural industrial and mining enterprises etc. The motor and water pump assembly into one, with simple structure, convenient installation remove, cover a small area, easy to use and maintain, safe and reliable operation, no water polluted, etc.

Use Condition:

The depth of submersible pump into the underwater is no more than 5 m; Temperature is no more than 40 ℃; The water sand content or the content of solid particles insoluble in water no more than 0.1% of the volume, particle size is not more than 0.2 mm; No corrosion, water PH of 6.5-8; Such as general temperature water: the water in well, river, or lake.


QY Submersible Pump Application Field

Nonferrous metal ore dressing Hydraulic coal transport Hydraulic coal mining Farm drain flooded fields Artificial wetland Subway drain water station Marine boiler water supply Marine fire water supply Ballast water supply Pool and pond dredging Tunnel construction drainage Nuclear power station feed water Water pit drain water Lift lower pipe City sewage drainage and drain flooded fields Feed water、water drain Waterworks Water Tower Boiler Feed Water Building Sewage Waste Water Treatment Milk Power Production Commercial Building Heating Washing and Cleaning Pressure Pump Station Entrance Pump Station Impounding Reservoir Drinking Industry Mining Industry Water Distribution Shipping Automotive Industry Sewage Transportation Sewage Treatment Water Treatment Industrial Boiler Industrial Water Treatment Industrial Wastewater Home Building Commercial Building District Heating Pharmaceutical Industry Agricultural Pumping automobile making cooper mine Canned factory Flour mills school hospital Organic farms Fruits Garden vegetable cultivation Liquor factory Well drilling company coal mining Rig auxiliary Dressing plant Nonferrous metal tall building booster booster Asbestos cement Lime plaster Green belts garden irrigation Rubber factory/rubber plant Dye factory The tea plant Organic Ranch Beer factory soft drink factory milk factory fishing Ceramic Draw water Well drilling Oil field Fossil oil Steel mills Brick factory Pile foundation Fire-fighting Fire-fighting pressurize Pharmacy Food gem mining

QY Submersible Pump Model

Model Flow Lift Power
APKQY10-60/2-4 10 60 4
APKQY25-30-3.5 25 30 3.5
APKQY100-7-3 100 7 3
APKQY20-36/2-3 20 36 3
APKQY12.5-40-3 13 40 3
APKQY12.5-50-4A 12.5 50 4
APKQY25-38/2-4A 25 38 4
APKQY25-30-4A 25 30 4
APKQY40-21-4A 40 21 4
APKQY65-13-4A 65 13 4
APKQY45-18/1-4A 45 18 4
APKQY65-15/1-4A 65 15 4
APKQY100-9-4A 100 9 4
APKQY160-5.5-4A 160 5.5 4
APKQY10-54/3-3A 10 54 3
APKQY8.4-50/2-3A 8.4 50 3
APKQY20-32/3-3A 20 32 3
APKQY65-10-3A 65 10 3
APKQY40-16-3A 40 16 3
APKQY25-26-3A 25 26 3
APKQY15-36-3A 15 36 3
APKQY10-36/1-2.2A 10 36 2.2
APKQY100-7/1-2.2A 100 7 2.2
APKQY100-5/1-2.2A 100 5 2.2
APKQY100-4.5-2.2A 100 4.5 2.2
