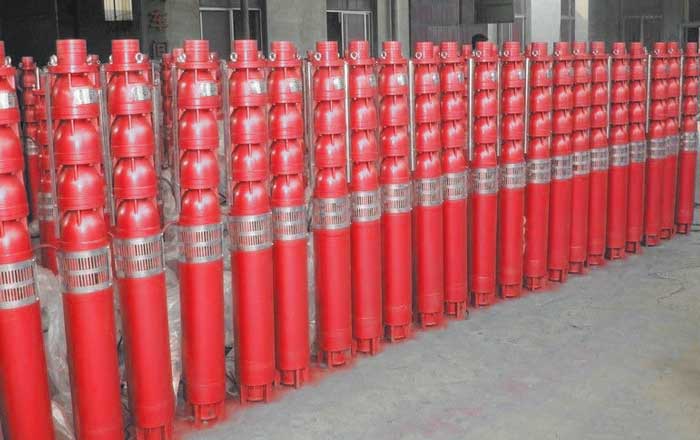

QJR Submersible Pump

QJR Submersible Pump Details

QJR submersible hot water pump operating parameters:

Flow range:10~500 m3/h ;   Lift range:10~600m ; Applicable well Borehole diameter: φ175~φ400mm;  Diameter scope:φ32~φ203mm

QJR submersible hot water pump overview:

is a kind of Water -lifting machine with submersible motor and submersible pump intergrated directly into one set,
working deep into the water.It is mainly used in the feeding and draining engineering of farmland
irrigation,city,industry and mine establishments.

Its motor and water pump assembly into one, with simple structure, convenient installation remove, cover an area small, easy to use and maintain, safe and reliable operation, no water pollute, etc.

QJR submersible hot water pump application scope:

1.collecting and reusing boiler hot water,

2.collecting and reusing the leaking water of heating pipelines in winter.

3. Factory hot water heat dissipation and reuse (the pump should be submerged in to water when working)

4. Pumping high temperature water in the heat-supply network groove.

5. Suitable for heat-supply equipment maintenance. 6. Suitabel for bath center hotwater supply7.Lifting underground hot spring water, etc.




QJR Submersible Pump Application Field

Nonferrous metal ore dressing Hydraulic coal transport Hydraulic coal mining Farm drain flooded fields Artificial wetland Subway drain water station Marine boiler water supply Marine fire water supply Ballast water supply Pool and pond dredging Tunnel construction drainage Nuclear power station feed water Water pit drain water Lift lower pipe City sewage drainage and drain flooded fields Feed water、water drain Waterworks Water Tower Boiler Feed Water Building Sewage Waste Water Treatment Milk Power Production Commercial Building Heating Washing and Cleaning Pressure Pump Station Entrance Pump Station Impounding Reservoir Drinking Industry Mining Industry Water Distribution Shipping Automotive Industry Sewage Transportation Sewage Treatment Water Treatment Industrial Boiler Industrial Water Treatment Industrial Wastewater Home Building Commercial Building District Heating Pharmaceutical Industry Agricultural Pumping automobile making cooper mine Canned factory Flour mills school hospital Organic farms Fruits Garden vegetable cultivation Liquor factory Well drilling company coal mining Rig auxiliary Dressing plant Nonferrous metal tall building booster booster Asbestos cement Lime plaster Green belts garden irrigation Rubber factory/rubber plant Dye factory The tea plant Organic Ranch Beer factory soft drink factory milk factory fishing Ceramic Draw water Well drilling Oil field Fossil oil Steel mills Brick factory Pile foundation Fire-fighting Fire-fighting pressurize Pharmacy Food gem mining

QJR Submersible Pump Model

Model Flow Lift Power
APK300QJR500-90/6 500 90 220
APK300QJR500-75/5 500 75 180
APK300QJR500-60/4 500 60 140
APK300QJR500-45/3 500 45 110
APK300QJR500-30/2 500 30 75
APK300QJR500-15/1 500 15 30
APK300QJR400-120/3 400 120 220
APK300QJR400-80/2 400 80 160
APK300QJR400-40/1 400 40 75
APK300QJR300-80/4 300 80 110
APK300QJR300-60/3 300 60 75
APK300QJR300-40/2 300 40 55
APK300QJR300-20/1 300 20 25
APK300QJR240-110/5 240 110 100
APK300QJR240-88/4 240 88 100
APK300QJR240-66/3 240 66 75
APK300QJR240-44/2 240 44 45
APK300QJR240-22/1 240 22 22
APK300QJR200-120/6 200 120 110
APK300QJR200-100/5 200 100 90
APK300QJR200-80/4 200 80 75
APK300QJR200-60/3 200 60 55
APK300QJR200-40/2 200 40 37
APK300QJR200-30/1 200 30 25
APK300QJR200-20/1 200 20 18.5

Send Order Request
