QJ Submersible Pump

QJ Submersible Pump Details

QJ Deep Well Submersible Pump Operating Parameters:

Flow range:10—500m3/h;  Head range:15—405m;  Diameter scope:φ32—φ203mm;   Temperature range: -15—80℃;   Power: 0.75kW-410kW; Frequency: 50hz/60hz;   Voltage: 380v/ above or as per your request.


QJ Deep Well Submersible Pump Product Overview:

QJ series submersible pump is widely used in various kinds of water conservancy facilities such as farm irrigation, sprinkler irrigation with water, industrial and supply and drainage system of civil building, draining water in hills or mountainous area, diversion in low-lying areas, urban and rural industrial and mining enterprises water supply, drainage, etc.

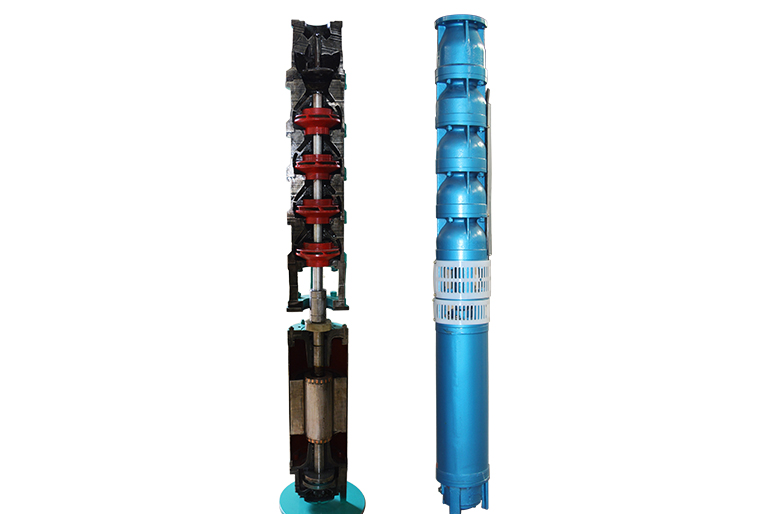

Its motor and water pump assembly into one, with simple structure, convenient installation remove, cover an area small, easy to use and maintain, safe and reliable operation, no water pollute, etc.

QJ Deep Well Submersible Pump Applicable scope:

  1. the three phase power which voltage 380 V, deviation no more than 5%, frequency 50 HZ ac, deviation no more than 1%.
  2. motor lumen must be filled with the clean water.
  3. the first level of pump impeller should be put into the dynamic water level at least 2 m, the electric pumping unit in the following static water level must not be more than 70 m from the bottom, the motor shall no less than 3 m from the well bottom.
  4. water temperature is not higher than 20 ℃, QJR type hot water submersible pump temperature can reach to 80℃.
  5. sand content of water (according to the quality) no more than 0.01%.
  6. the PH of the water is among 6.5-8.5.
  7. the water content of hydrogen sulfide is no more than 1.5 mg/L.
  8. the content of chlorine ion in the water is not more than 400 mg/L
  9. water yield shall ensure the need of the water pumping continuous operation of

QJ Submersible Pump Application Field

Nonferrous metal ore dressing Hydraulic coal transport Hydraulic coal mining Farm drain flooded fields Artificial wetland Subway drain water station Marine boiler water supply Marine fire water supply Ballast water supply Pool and pond dredging Tunnel construction drainage Nuclear power station feed water Water pit drain water Lift lower pipe City sewage drainage and drain flooded fields Feed water、water drain Waterworks Water Tower Boiler Feed Water Building Sewage Waste Water Treatment Milk Power Production Commercial Building Heating Washing and Cleaning Pressure Pump Station Entrance Pump Station Impounding Reservoir Drinking Industry Mining Industry Water Distribution Shipping Automotive Industry Sewage Transportation Sewage Treatment Water Treatment Industrial Boiler Industrial Water Treatment Industrial Wastewater Home Building Commercial Building District Heating Pharmaceutical Industry Agricultural Pumping automobile making cooper mine Canned factory Flour mills school hospital Organic farms Fruits Garden vegetable cultivation Liquor factory Well drilling company coal mining Rig auxiliary Dressing plant Nonferrous metal tall building booster booster Asbestos cement Lime plaster Green belts garden irrigation Rubber factory/rubber plant Dye factory The tea plant Organic Ranch Beer factory soft drink factory milk factory fishing Ceramic Draw water Well drilling Oil field Fossil oil Steel mills Brick factory Pile foundation Fire-fighting Fire-fighting pressurize Pharmacy Food gem mining

QJ Submersible Pump Model

Model Flow Lift Power
APK300QJ500-90/6 500 90 220
APK300QJ500-75/5 500 75 180
APK300QJ500-60/4 500 60 140
APK300QJ500-45/3 500 45 110
APK300QJ500-30/2 500 30 75
APK300QJ500-15/1 500 15 30
APK300QJ400-120/3 400 120 220
APK300QJ400-80/2 400 80 160
APK300QJ400-40/1 400 40 75
APK300QJ300-80/4 300 80 110
APK300QJ300-60/3 300 60 75
APK300QJ300-40/2 300 40 55
APK300QJ300-20/1 300 20 25
APK300QJ240-110/5 240 110 100
APK300QJ240-88/4 240 88 100
APK300QJ240-66/3 240 66 75
APK300QJ240-44/2 240 44 45
APK300QJ240-22/1 240 22 22
APK300QJ200-120/6 200 120 110
APK300QJ200-100/5 200 100 90
APK300QJ200-80/4 200 80 75
APK300QJ200-60/3 200 60 55
APK300QJ200-40/2 200 40 37
APK300QJ200-30/1 200 30 25
APK300QJ200-20/1 200 20 18.5
