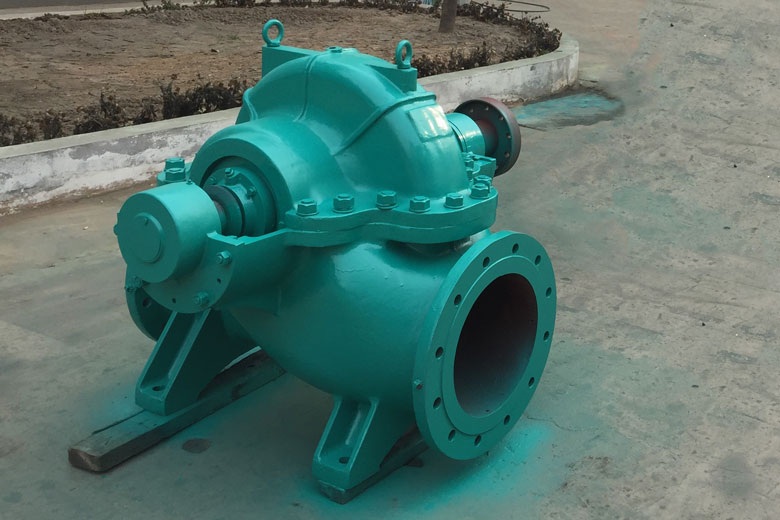

OS axially split pump

OS axially split pump Details

OS axially split pump detail:

Flow range:20-11600m3/h;    Head range:6.5-200m;  outlet diamater:80-800mm;  working temperate:top to 105℃; allow working pressure:top to 25bar

OS axially split pump overview:

Model OS pumps are single-stage double-suction interopened spiral casing centrifugal pumps and used or liquid transportation for water works,airconditioning circulation, building, irrigation,drainage pump stagion,electric power station,industrial water supply system,fire-fighting system, shipbuilding and so on.

OS axially split pump material:

Pump casing:casting pig, ductalloy, cast steel;

Impeller: bronze, casting pig, silicon brass, stainless steel;

Shaft: stainless steel, carbon steel;

Seal-ring on pump casing:bronze, casting pig, silicon brass, stainless steel.

OS axially split pump feature:

1.Compact structure nice appearance, good stability and easy installation;

2.Stable running the optimally designed double-suction impeller makes the axial force reduced to the minimum and has a blade-style of very excellent hydraulic performance,both internal surface of the of the pump casing and the impeller's surace, being precisely cast, are extremely smooth and have a notable performance ovapour-corrosion resisting ans a high efficiency.

3.Bearing use SKF and NSF bearings to guarantee a stable running, low noise ande long duration.

4.Shaft seal use BURGMANN mechanical or stuffing seal to ensure a 8000h non-leak running.

5.Model of erection no sdjustment needs in assembly and can be vertically or horizontally mounted upon the conditions of use on the spot.



OS axially split pump Application Field

Nonferrous metal ore dressing Hydraulic coal transport Hydraulic coal mining Farm drain flooded fields Artificial wetland Subway drain water station Marine boiler water supply Marine fire water supply Ballast water supply Pool and pond dredging Tunnel construction drainage Nuclear power station feed water Water pit drain water Lift lower pipe City sewage drainage and drain flooded fields Feed water、water drain Waterworks Water Tower Boiler Feed Water Building Sewage Waste Water Treatment Milk Power Production Commercial Building Heating Washing and Cleaning Pressure Pump Station Entrance Pump Station Impounding Reservoir Drinking Industry Mining Industry Water Distribution Shipping Automotive Industry Sewage Transportation Sewage Treatment Water Treatment Industrial Boiler Industrial Water Treatment Industrial Wastewater Home Building Commercial Building District Heating Pharmaceutical Industry Agricultural Pumping automobile making cooper mine Canned factory Flour mills school hospital Organic farms Fruits Garden vegetable cultivation Liquor factory Well drilling company coal mining Rig auxiliary Dressing plant Nonferrous metal tall building booster booster Asbestos cement Lime plaster Green belts garden irrigation Rubber factory/rubber plant Dye factory The tea plant Organic Ranch Beer factory soft drink factory milk factory fishing Ceramic Draw water Well drilling Oil field Fossil oil Steel mills Brick factory Pile foundation Fire-fighting Fire-fighting pressurize Pharmacy Food gem mining

OS axially split pump Model

Model Flow Lift Power
APKOS80-210(I)G 131 60.5 37
APKOS80-210(I)G 164 55 37
APKOS80-210(I)G 197 50 37
APKOS80-210(I)GA 121 52 30
APKOS80-210(I)GA 151 47.5 30
APKOS80-210(I)GA 181 42.2 30
APKOS80-210(I)GB 115 44 30
APKOS80-210(I)GB 144 39 30
APKOS80-210(I)GB 173 35 30
APKOS80-210(I)GC 110 37 22
APKOS80-210(I)GC 137 33.5 22
APKOS80-210(I)GC 164 27.7 22
APKOS80-210G 107 55.5 30
APKOS80-210G 134 51 30
APKOS80-210G 160 46 30
APKOS80-210GA 106 47.7 30
APKOS80-210GA 133 43.5 30
APKOS80-210GA 159 37 30
APKOS80-210GB 100 40 22
APKOS80-210GB 124 36 22
APKOS80-210GB 149 30 22
APKOS80-210GC 91 35 18.5
APKOS80-210GC 113 31 18.5
APKOS80-210GC 136 27 18.5
APKOS80-210(I) 66 15 5.5
