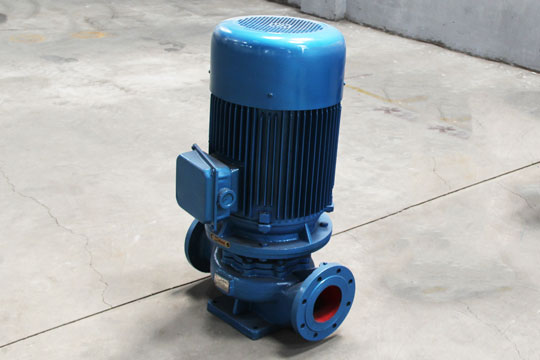

SLGD low speed vertical pipeline pump

SLGD low speed vertical pipeline pump Details

SLGD low-speed vertical pipeline pump detail:

Flow range: 1.5~1200 m³/h;   Head range: 8~150m,

SLGD low-speed vertical pipeline pump overview:

The serues pump that suitable for environmental requirements quiet place, at the same time, we can provide hot water pump, chemical pump, explosion-proof oil pump, explosion-proof chemical pump and so on many kinds of types.

SLGD low-speed vertical pipeline pump characteristics:

1. Compact structure, small volume , beautiful appearance. Their vertical structure’ low gravity center and gravity center overlapping at the pump foot center, enhancing the stability of running and life.
2. Easy installation. Same diameter of inlet and outlet and in the same central line, making them can be installed directly at any part of the pipeline like valve. Motor can be used outdoors with rain covers. Pump with mounting base , increasing the stability of installation.
3. Smooth operation, low noise , high components concentricity. Motor adopts low noise bearing, and have non-stop refueling device; pump impeller have excellent static and dynamic balance, no vibration running, all of these improve the using environment.
4. No leakage. Shaft sealing adopts corrosion-resistant alloy mechanical seal, solving the serious leakage problem of centrifugal pump packing seal, extending service life, ensuring the operation site clean and tidy.
5. Convenient maintenance. Without removing the pipe, just remove the pump cover nut and take out the motor and rotating components for repair and maintenance.
6. According to the site condition , the pump can be vertical ,multi-mode installed. Based on the flow , lift requirements , using parallel, series connection method to increase the required flow and lift.

SLGD low speed vertical pipeline pump Application Field

栏目ID=6的表不存在(操作类型=0)

SLGD low speed vertical pipeline pump Model

Model Flow Lift Power
APKSLGD40-200 3.2 12.5 0.75
APKSLGD40-250 3.2 20 1.1
APKSLGD40-250A 2.8 16 0.75
APKSLGD40-160(I) 6.3 8 0.75
APKSLGD40-200(I) 6.3 12.5 0.75
APKSLGD40-200(I)A 5.5 9.5 0.75
APKSLGD40-250(I) 6.3 20 1.5
APKSLGD40-250(I)A 5.6 16 1.1
APKSLGD40-250(I)B 5.1 13 0.75
APKSLGD50-160 6.3 8 0.75
APKSLGD50-200 6.3 12.5 0.75
APKSLGD50-200A 5.5 9.5 0.75
APKSLGD50-250 6.3 20 1.5
APKSLGD50-250A 5.6 16 1.1
APKSLGD50-250B 5.1 13 0.75
APKSLGD50-160(I) 12.5 8 0.75
APKSLGD50-200(I) 12.5 12.5 1.1
APKSLGD50-200(I)A 11.3 10.1 0.75
APKSLGD50-250(I) 12.5 20 2.2
APKSLGD50-250(I)A 11.7 17.6 1.5
APKSLGD50-250(I)B 10.2 13.4 1.1
APKSLGD50-315(I) 12.5 32 4
APKSLGD50-315(I)A 11.7 28 3
APKSLGD50-315(I)B 10.1 21 3
APKSLGD65-160 12.5 8 0.75
